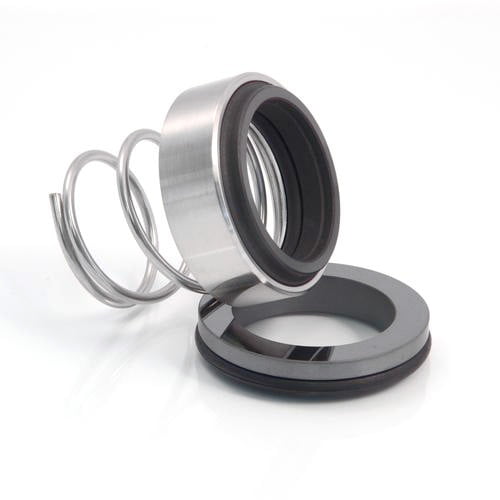

Conical Spring Seal

We are engaged in offering superior quality Spring Unbalanced Seal and have carved a niche for ourselves in this market category. These are available in different specifications to meet the variegated needs of the clients

Item code : AI209

Type AI209 is Conical Spring Seal  The AI209 series seal are extremely rugged & reliable & therefore used in wide range of sealing applications. These Seals have very few parts & hence can be easily assembled or dismantled. The seals arrangement does not warrant any modification even in case of conversion from gland packing.

The compact design eliminates the requirement of extra radial & axial space for its installation.

Material

  • Seal Faces :Carbon, Ceramic , Silicon Carbide , Tungsten Carbide
  • Secondary Seals : Viton/PTFE/GFT
  • Metal Components :U SS-316
Operating Limits :
  • Shaft Dia.: 10 to 100mm
  • Pressure: up to 5 Bars
  • Temp. : -50 to 180°C
  • Speed : up to 2900 rpm max
