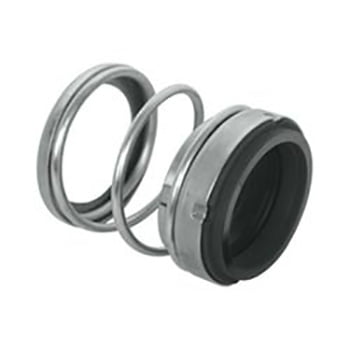

Elastomer Bellow Seal (AI214)

Supplier & Distributor of Elastomer Bellow Seal. Our product range also comprises of Dry Running Agitator Seal, Multi Spring Unbalanced Seal and Spring Unbalanced Seal.

Item code : AI214

Type AI214 has been designed for general sealing purpose which includes easy installation of the seal. AI214 has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility to compensate for lack of concentric of the shaft & misalignment & wear due to thrust movement of the shaft.

The seal can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is enhanced through the unique rubber bellow which fits on the shaft through the interference fit between the collar, rubber bellow & the shaft.

Material

  • Seal Faces: Carbon, Ceramic , Silicon Carbide , Tungsten Carbide
  • Secondary Seals : Nitrile/Neoprene/Viton
  • Metal Components : SS-304
Operating Limits :
  • Shaft Dia. : 10 to 100mm
  • Pressure : up to 5 Bars
  • Temp. : -20 to 80°C
  • Speed : up to 2900 rpm max
