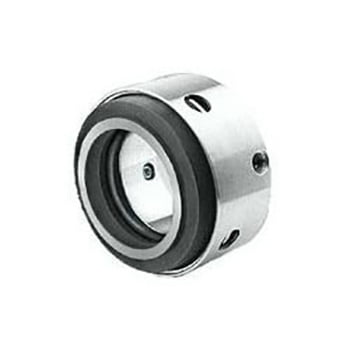

Multi Spring Reversed Balanced Seal (AI219)

We also offer Multi Spring Reversed Balanced Seal that can be externally mounted and is internally balanced with multi-coil spring seal. These are made from high quality of raw material which ensure durability at its user end.

Item code : AI219

Type AI219 is externally mounted internally reverse balanced multi spring seal. The unique feature of this type of seal is that, it eliminated the shaft step or sleeves for balancing. These seals are externally mounted & hence the metal parts including the springs do not come in contact with the circulating media & therefore can be use for corrosive or abrasive media sealing. The compact design eliminates the requirement of extra radial & axial space for its installation.

Material

  • Seal Faces :Carbon, Ceramic , Silicon Carbide , Tungsten Carbide
  • Secondary Seals :Viton/PTFE/GFT
  • Metal Components :55-316
Operating Limits :
  • Shaft Dia. : 10 to 100mm
  • Pressure : up to 10 Bars
  • Temp. : -50 to 80°C
  • Speed : up to 2900 rpm max
