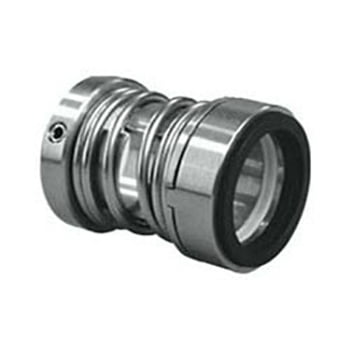

Single Coil Spring Unbalanced Seal(AI218)

We avail our clients with our fine and unique range of Single Coil Spring Unbalanced Seal that is manufactured using high grade quality material and is made as per the matching quality standards.

Item code : AI218

TYPE AI218: are single coil unbalanced seals, these seals are simple in design & reliable & rugged enough for the most difficult applications. In AI218 ‘V” packing used as Secondary seals respectively. Special notches enhance the required driving torque & hence the seal is independent of direction of rotation. Non-clogging spring design enables these seals rube reliably used in situations involving abrasive, corrosive& viscous fluids generally handled by high Temperature pumps.

Material

  • Seal Faces :Carbon, Ceramic , Silicon Carbide , Tungsten Carbide
  • Secondary Seals :Viton/PTFE/GFT
  • Metal Components : SS-316
Operating Limits :
  • Shaft Dia :25 to 100mm
  • Pressure :up to 5 Bars
  • Temp. :-50 to 150°C
  • Speed :up to 2900 rpm max
