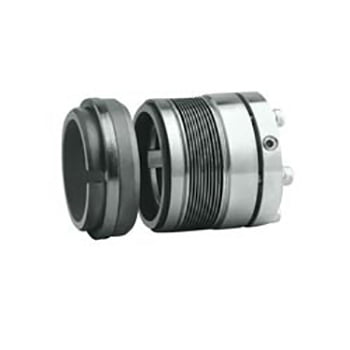

Welded Ends Metal Bellow Seal
Supplier & Distributor of Welded Ends Metal Bellow Seal. Our product range also comprises of Dry Running Agitator Seal, Multi Spring Unbalanced Seal and Spring Unbalanced Seal.
Item code : AI224
TYPE AI224 : is Inherently balanced metal bellow seal. This seals are independent of direction of rotation. The unique feature of this type of seal is that, there is no dynamic ‘0’ rings and therefore it will never hang-up or damage the shaft and sleeve, it also has an ability to handle corrosive as well as abrasive & viscous media. These seals have self-cleaning & non-clogging construction. With selection of special bellow material it can be used in highly corrosive media.
Material
- Seal Faces : Carbon, Ceramic , Silicon Carbide , Tungsten Carbide
- Secondary Seals :Viton/PTFE/GFT/Graphite
- Metal Components : SS-316
Operating Limits :
- Shaft Dia : 19 to 100mm
- Pressure : up to 10 Bars
- Temp. : -50 to 350°C
- Speed : up to 2900 rpm max
Bellow Material :
- AM305
- Inconel 625
